Bradford White Hybrid Water Heater Installation Instructions

Thinking about upgrading your home’s water heating system? If you’re looking for significant energy savings and reliable hot water, a Bradford White hybrid water heater is an excellent choice. These innovative units, also known as heat pump water heaters, are incredibly efficient, but installing one does require a careful approach.

You might be feeling a bit daunted by the prospect of a new appliance installation, especially one that combines plumbing and electrical work. Don’t worry—you’re not alone! Many homeowners and even seasoned DIYers find themselves asking, “How do I ensure a smooth and safe installation?”

Here at HVACRLY, we’re dedicated to empowering you with the knowledge you need. We promise to walk you through every critical step, providing clear, actionable Bradford White hybrid water heater installation instructions. By the end of this guide, you’ll have a solid understanding of the process, whether you’re tackling it yourself or working with a professional. We’ll cover everything from planning and preparation to the final checks, ensuring you’re set up for years of efficient hot water.

Understanding Your Bradford White Hybrid Water Heater

Before we dive into the nitty-gritty of installation, let’s quickly understand why a Bradford White hybrid water heater is such a smart choice. These units don’t just heat water with an electric element; they also use heat pump technology to pull warmth from the surrounding air, making them incredibly efficient.

This dual heating method means they use significantly less electricity than conventional electric water heaters. Imagine cutting your water heating costs by up to 70%! That’s not just great for your wallet; it’s also fantastic for the environment, making it a truly sustainable Bradford White hybrid water heater installation choice.

Energy Efficiency: Dramatically lower operating costs compared to standard electric models.
Environmental Impact: Reduced carbon footprint due to lower energy consumption.
Reliable Performance: Bradford White is a trusted name, known for durability and consistent hot water delivery.

Getting your new unit installed correctly from the start is key to unlocking these benefits. Let’s get prepared!

Pre-Installation Checklist: Setting Up for Success

A successful installation begins long before you even unbox the water heater. Taking the time to plan and prepare will save you headaches down the line. This is where we lay the groundwork for Bradford White hybrid water heater installation instructions best practices.

Sizing and Location Considerations

Choosing the right size and location for your hybrid water heater is crucial for its efficiency and longevity.

Sizing: Hybrid water heaters come in various capacities (e.g., 50, 65, 80 gallons). Ensure your chosen unit adequately serves your household’s hot water demand. A common rule of thumb is 50-65 gallons for a family of 3-4.
Location: Hybrid water heaters require a specific environment.

They need a minimum of 1,000 cubic feet of air space to operate efficiently (think a room roughly 10x10x10 feet or larger).
Ideal locations are unconditioned spaces like a basement, garage, or utility room, where there’s ambient heat to draw from.
Avoid small closets or heated living spaces, as the unit will cool the air, making your HVAC work harder.
Ensure adequate clearance around the unit (check your specific model’s manual for exact requirements, often 6-12 inches on all sides).

Drainage: You’ll need access to a floor drain or condensate pump for the unit’s condensate line.

Essential Tools and Materials

Having everything you need on hand will make the installation process much smoother. Here’s a general list:

Pipe wrenches (two for tightening connections)
Adjustable wrench
Screwdrivers (Phillips and flathead)
Wire strippers and cutters
Voltage tester
Tape measure
Level
PEX crimping tool (if using PEX) or copper pipe cutter and soldering supplies (if using copper)
Teflon tape and pipe dope (thread sealant)
Water heater drain pan (required in many areas)
Condensate drain line (PVC pipe or flexible tubing)
Electrical wire (appropriate gauge for dedicated circuit)
New circuit breaker (if needed)
Dielectric unions (to prevent galvanic corrosion)
Safety glasses and gloves

Code Compliance and Permits

This is a big one, folks! Always check with your local municipality for building codes and permit requirements before starting any water heater installation. Codes vary widely by location, covering everything from seismic strapping to expansion tanks and specific electrical requirements. Ignoring these can lead to fines, safety hazards, and issues when selling your home. A proper Bradford White hybrid water heater installation instructions guide will always emphasize this.

Safety First!

Before you even think about touching the old unit or connecting the new one, remember these critical safety steps:

Turn off Power: Locate your home’s main electrical panel and switch off the circuit breaker that supplies power to the old water heater. Use a voltage tester to confirm the power is off at the unit.
Shut off Water Supply: Find the main water shut-off valve for your home or the dedicated shut-off valve for the water heater and turn it off.
Drain Old Unit: Connect a garden hose to the drain valve at the bottom of the old water heater and route it to a floor drain or outdoors. Open a hot water faucet inside your home to break the vacuum and allow the tank to drain completely.

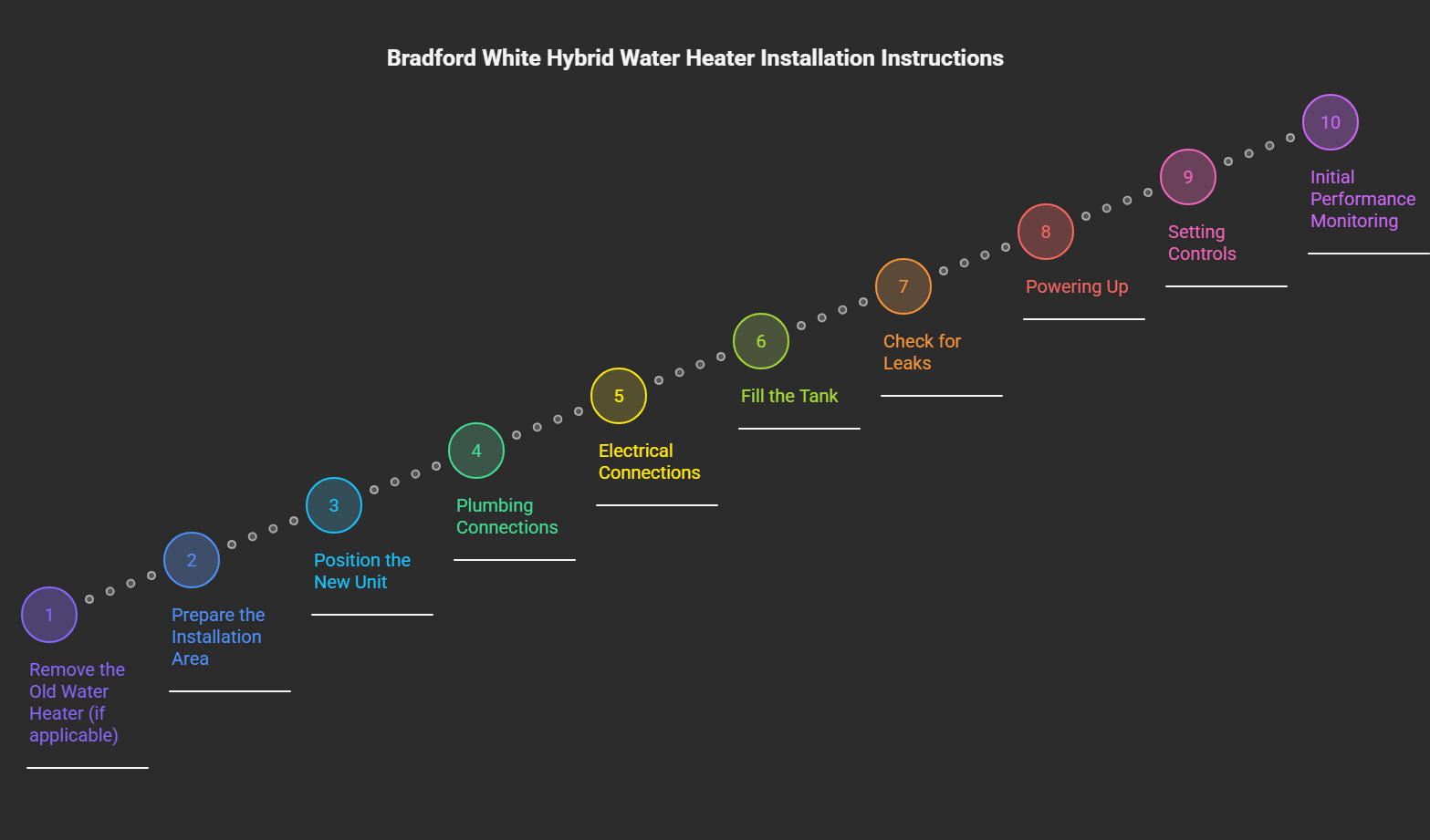

Step-by-Step: Bradford White Hybrid Water Heater Installation Instructions Guide

Alright, it’s time to roll up our sleeves! Follow these steps carefully to ensure a safe and efficient installation of your new Bradford White hybrid water heater.

Remove the Old Water Heater (if applicable)

Once drained and disconnected from water and power, carefully disconnect the temperature and pressure (T&P) relief valve discharge pipe, hot and cold water lines, and electrical wiring. With a helper, move the old unit out of the way. Remember, they can be heavy!

Prepare the Installation Area

Place a new water heater drain pan in the chosen location. This is often required by code and will protect your home from potential leaks. Ensure the surface is level. If it’s not, use shims to level the pan and the water heater within it.

Position the New Unit

Carefully move your new Bradford White hybrid water heater into the drain pan. Position it according to the manufacturer’s clearance requirements for airflow around the unit. This is critical for the heat pump to operate efficiently.

Plumbing Connections

This is where your pipe wrenches and sealant come in handy.

T&P Relief Valve: Install the T&P relief valve into the designated opening on the top or side of the tank. Ensure it’s pointing downwards. Apply Teflon tape or pipe dope to the threads.
T&P Discharge Pipe: Connect a discharge pipe to the T&P valve, routing it downwards to within 6 inches of the floor or to an indirect waste receptor, as per local code. Do not cap or put a valve on this line!
Cold Water Inlet: Connect the cold water supply line to the “cold” inlet on the water heater. Use dielectric unions if connecting dissimilar metals (e.g., copper to galvanized pipe) to prevent corrosion. Apply Teflon tape and pipe dope to threads.
Hot Water Outlet: Connect the hot water supply line to the “hot” outlet on the water heater, again using dielectric unions if necessary.
Condensate Drain: Connect the condensate drain line to the unit’s condensate outlet. Route this line with a slight downward slope to a floor drain or a condensate pump. Make sure there are no kinks in the line.

Electrical Connections

This step involves high voltage and should only be performed by someone comfortable and competent with electrical work. If in doubt, please call a licensed electrician.

Ensure the circuit breaker for the water heater is still off.
Remove the electrical access panel on the unit.
Feed the electrical cable through the provided conduit knockout.
Connect the wires: typically black to black, white to white, and ground (bare copper or green) to the green ground screw. Follow the wiring diagram in your Bradford White manual precisely.
Secure all connections tightly.
Replace the electrical access panel.

Fill the Tank

Before turning on the power, the tank must be completely filled with water.

Close the water heater’s drain valve.
Open the cold water supply valve to the water heater.
Open several hot water faucets inside your home (upstairs faucets are best). This allows air to escape from the tank as it fills.
Once water flows steadily from the hot water faucets (no sputtering), the tank is full. Close the hot water faucets.

Check for Leaks

With the tank full, visually inspect all plumbing connections for any signs of leaks. Tighten any weeping connections. It’s much easier to catch a small drip now than after the unit is powered up.

Post-Installation Checks and First Start-Up

You’re almost there! A few final checks will ensure your new Bradford White hybrid water heater is ready to deliver efficient hot water. This is part of the crucial Bradford White hybrid water heater installation instructions care guide.

Powering Up

Once you’ve confirmed no leaks and the tank is full, it’s safe to restore power.

Go to your electrical panel and flip the circuit breaker for the water heater back to the “ON” position.
The unit will typically go through an initial startup sequence. Listen for the compressor and fan to begin operating.

Setting Controls

Your Bradford White hybrid water heater will have an electronic control panel. Familiarize yourself with its functions:

Temperature Setting: Set your desired water temperature. Most manufacturers recommend 120°F (49°C) for energy efficiency and safety.
Operating Modes: Your unit will likely have several modes:
- Heat Pump (or Efficiency) Mode: Uses only the heat pump for maximum energy savings. This is the most eco-friendly Bradford White hybrid water heater installation setting.
- Hybrid (or Auto) Mode: Uses the heat pump primarily, but engages the electric elements during periods of high demand.
- High Demand (or Electric) Mode: Primarily uses electric elements, similar to a conventional electric water heater, for rapid recovery when needed (e.g., many guests). This is the least efficient mode.
- Vacation Mode: Maintains a low temperature to prevent freezing and conserve energy while you’re away.
Start with Heat Pump or Hybrid mode for optimal energy savings.

Initial Performance Monitoring

Over the next few hours, keep an eye (and ear) on your new water heater:

Listen: The heat pump compressor will make some noise, similar to a refrigerator. Ensure there are no excessively loud or unusual grinding sounds.
Check Hot Water: After a few hours, test your hot water faucets to ensure you’re getting hot water at your desired temperature.
Condensate Drainage: Verify that condensate is draining properly from the unit into your floor drain or pump.

Troubleshooting Common Issues During & After Installation

Even with the best preparation, sometimes little hiccups occur. Here are some common problems with Bradford White hybrid water heater installation instructions and how to address them.

No Hot Water or Insufficient Hot Water

Check Power: Is the circuit breaker tripped? Is the unit plugged in securely?
Verify Settings: Is the temperature set correctly? Is it in a mode that allows for heating (e.g., not vacation mode)?
First Cycle: Remember, the first heating cycle with a hybrid unit can take longer than a conventional electric heater, especially in heat pump mode. Give it time.
Airflow: Ensure the unit has adequate clearance for airflow. Blocked vents can severely reduce efficiency and heating capacity.

Leaks

Re-tighten Connections: Most leaks are due to improperly tightened plumbing connections. Gently tighten them, being careful not to over-tighten and strip threads.
T&P Valve: A small drip from the T&P valve might indicate excessive pressure. This could be normal during heating cycles, but persistent dripping may require an expansion tank or a check of your home’s water pressure.

Unusual Noises

Gurgling/Hissing: This is often normal as water heats and air escapes.
Loud Buzzing/Grinding: Could indicate an issue with the heat pump compressor or fan. If persistent and loud, contact a professional.

Error Codes

Your unit’s control panel may display error codes. Always refer to your Bradford White owner’s manual for specific code explanations and troubleshooting steps. Don’t ignore them!

Sustainable & Eco-Friendly Practices for Your Hybrid Water Heater

You’ve made an excellent choice for efficiency; now let’s ensure you get the most out of it with some sustainable Bradford White hybrid water heater installation tips and ongoing care.

Optimal Mode Selection: For maximum energy savings, keep your unit in “Heat Pump” or “Hybrid” mode as much as possible. Only use “High Demand” when absolutely necessary.
Temperature Setting: Keep your thermostat set to 120°F. Higher temperatures waste energy and increase the risk of scalding.
Clean the Air Filter: The heat pump has an air filter (like your HVAC system) that needs regular cleaning or replacement (every 3-6 months, depending on usage and environment). A dirty filter significantly reduces efficiency. This is a critical part of your Bradford White hybrid water heater installation instructions care guide.
Anode Rod Inspection: Consider having the anode rod inspected every 3-5 years. This “sacrificial” rod protects the tank from corrosion. Replacing it can extend the life of your unit.
Condensate Drain Check: Periodically ensure the condensate drain line is clear and free of blockages.
Insulate Pipes: Insulating the first 6 feet of hot and cold water pipes connected to the water heater can further reduce heat loss and improve efficiency.

When to Call a Pro: Safety First!

While this guide provides comprehensive how to Bradford White hybrid water heater installation instructions, it’s essential to know your limits. Your safety and the correct operation of your appliance are paramount.

Always call a licensed plumber or electrician if:

You are uncomfortable with any part of the plumbing or electrical connections.
You encounter complex electrical wiring not covered in the manual.
You suspect a gas line issue (if replacing a gas unit—though hybrid units are electric, converting from gas involves significant work).
You experience persistent leaks or error codes that you can’t resolve with the manual.
Local codes require a professional installation or inspection for warranty validity.
You’re unsure about proper sizing or venting requirements.

There’s no shame in calling in the experts. It’s often the smartest and safest decision, ensuring your Bradford White hybrid water heater is installed to the highest standards and operates flawlessly for years to come.

Frequently Asked Questions About Bradford White Hybrid Water Heater Installation

How long does a Bradford White hybrid water heater installation typically take?

For a homeowner with some DIY experience, replacing an existing electric water heater with a new hybrid unit might take 4-8 hours. For a professional, it could be 2-4 hours, assuming no unexpected issues or code upgrades are needed.

What’s the best operating mode for maximum savings?

The “Heat Pump” or “Efficiency” mode will provide the greatest energy savings, as it relies solely on the highly efficient heat pump. Use “Hybrid” mode if your household has higher hot water demands that the heat pump alone can’t quite keep up with.

How often should I clean the air filter on my hybrid water heater?

Most manufacturers recommend checking and cleaning the air filter every 3-6 months. If your unit is in a dusty environment (like a workshop or utility room), you might need to clean it more frequently. A clean filter is crucial for the heat pump’s efficiency.

Can I replace my gas water heater with a Bradford White hybrid unit?

Yes, you can, but it’s a more complex conversion. You’ll need to cap off the gas line, ensure you have a dedicated 240V electrical circuit available (which most gas units don’t have), and potentially add a condensate drain. This type of conversion is usually best handled by a licensed professional.

Are there any rebates or incentives for installing a hybrid water heater?

Absolutely! Many utility companies, states, and even federal programs offer rebates, tax credits, or other incentives for installing energy-efficient appliances like hybrid water heaters. Check with your local utility provider and energy.gov for current programs in your area. These incentives can make your eco-friendly Bradford White hybrid water heater installation even more affordable!

Congratulations on taking a significant step towards a more energy-efficient and comfortable home with your Bradford White hybrid water heater! By following these comprehensive Bradford White hybrid water heater installation instructions and tips, you’re well on your way to enjoying reliable, cost-effective hot water.

Remember, proper installation is the foundation of long-term performance and savings. If any step feels beyond your comfort level, don’t hesitate to reach out to a qualified HVACR professional. Your safety and satisfaction are always our top priority. Enjoy your newfound efficiency!
